[Talk-TW] 答复: 答复: 答复: 地圖中文字亂碼的问题

Jacarri Chan jacarrichan於live.com
Wed 3月 19 06:51:41 UTC 2014


Hi Cheers:

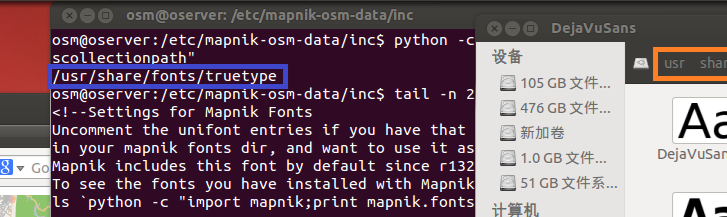

         $ python -c "import mapnik2;print mapnik2.fontscollectionpath" ,

         我執行了的,得到的結果是”/usr/share/fonts/truetype”,可以從以前發的圖片得到印證.







============================================================

Jacarri Chan

============================================================



发件人: Rex Tsai [mailto:rex.cc.tsai於gmail.com]
发送时间: 2014年3月19日 14:47
收件人: Jacarri Chan
抄送: Louis Liu; OSM Taiwan
主题: Re: [Talk-TW] 答复: 答复: 地圖中文字亂碼的问题



Hi,

You can use the following command to check your font paths.
$ python -c "import mapnik2;print mapnik2.fontscollectionpath"

Cheers

-Rex





Jacarri Chan <jacarrichan於live.com> 於 2014年3月19日 下午12:31 寫道:

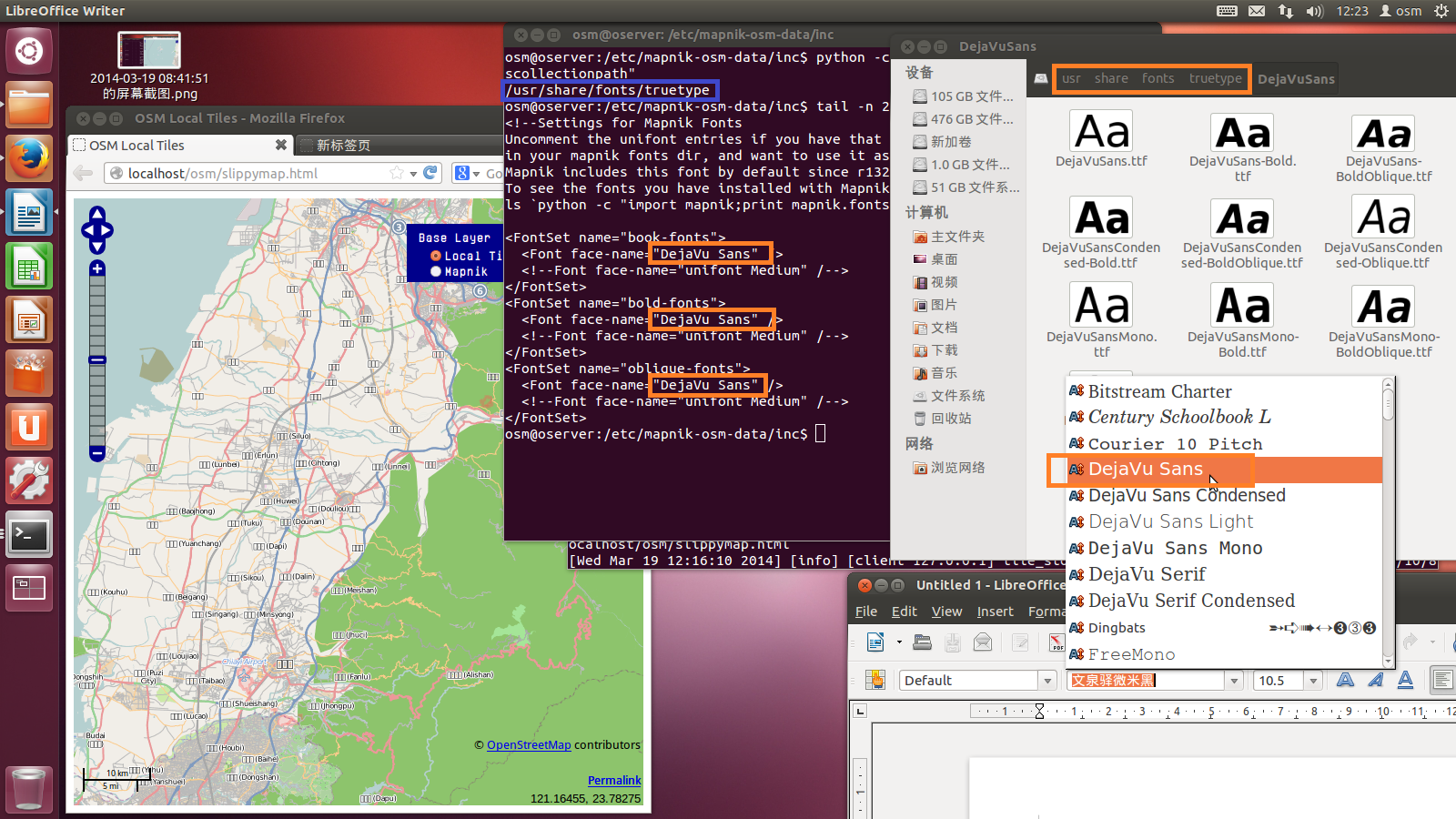

         我發現它使用的font檔是在/usr/share/fonts/truetype資料夾中。Libreoffice中能找到和樣式表中配置的同種字體。配置好並且系統重啟後,發現還是這樣。











============================================================

Jacarri Chan

============================================================



发件人: Louis Liu [mailto:pttdog於gmail.com]
发送时间: 2014年3月19日 11:05

收件人: Jacarri Chan
抄送: OSM Taiwan

主题: Re: 答复: [Talk-TW] 地圖中文字亂碼的问题



Hi Jacarri,

你下載、匯入的指令是成功的,所以你才會看到地圖出現。
你要修改的是 Mapnik (把資料繪製成地圖的工具)的樣式表,這個樣式表決定了地圖繪製的外觀,文字要用什麼字型,字的大小和顏色也是由這個表所決定的。

Cheers,

Louis



Jacarri Chan <jacarrichan於live.com> 於 2014年3月19日 上午10:41 寫道:

Hi Louis:



我的OSM data是從這個位址裡面http://download.geofabrik.de/asia/taiwan.html下載的taiwan-latest.osm.pbf,然後用這個命令[osm2pgsql --slim -C 1500 --number-processes 4 taiwan-latest.osm.pbf]導入進去的,我這樣操作錯了?





============================================================

Jacarri Chan

============================================================



发件人: Louis Liu [mailto:pttdog於gmail.com]
发送时间: 2014年3月19日 10:24
收件人: Jacarri Chan
抄送: OSM Taiwan
主题: Re: [Talk-TW] 地圖中文字亂碼的问题



Hi Jacarri,

你要在 style sheet 裡面設定字型,例如這樣:

<FontSet name="book-fonts">
  <Font face-name="DejaVu Sans Book" />
  <Font face-name="unifont Medium" />
</FontSet>

然後,Mapnik 所使用的字型檔案要放在特定的路徑內,用下列的指令可以查找到:

python -c "import mapnik;print mapnik.fontscollectionpath"

繪圖是個頗複雜的事情,加油!

Louis



Jacarri Chan <jacarrichan於live.com> 於 2014年3月19日 上午10:10 寫道:

Hi

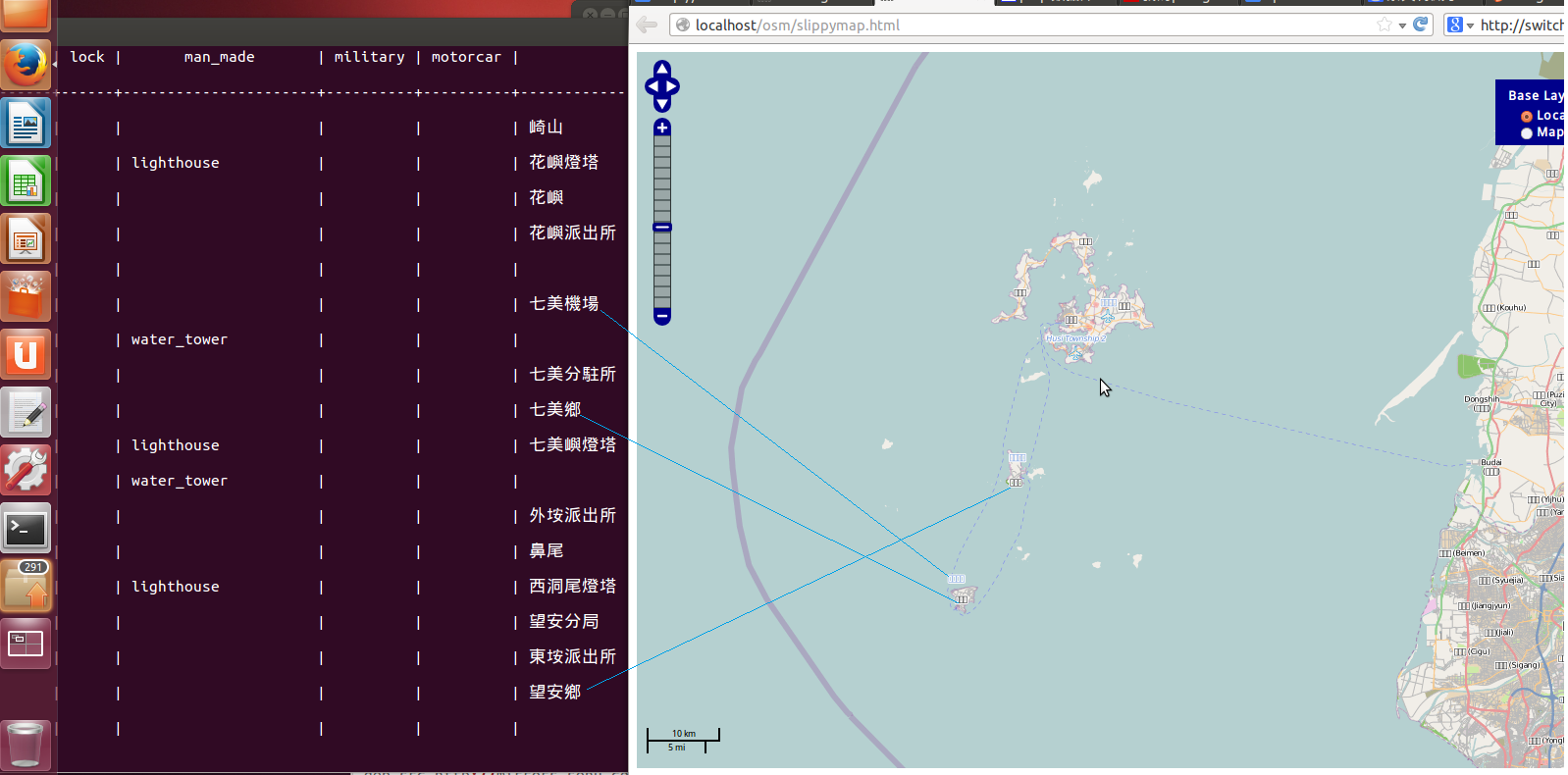

我按照這個文檔操作時, ( http://switch2osm.org/serving-tiles/building-a-tile-server-from-packages/# <http://switch2osm.org/serving-tiles/building-a-tile-server-from-packages/>   ), 跑起來後發現地圖中文字是亂碼的。 但是資料庫。裡面卻是正常的,請問這個問題怎麼解決啊?





============================================================

Jacarri Chan

============================================================
