[OSM-talk] Recent changes to slippymap Mapnik rendering
Michal Migurski
mike at stamen.com
Wed Oct 29 19:45:20 GMT 2008
>> I'm really looking to spark discussion here, rather than be
>> critical, though unfortunately all of my comments happen to be
>> negative.
>>
>
> Here are some positives (they're not that hard to find):
> - Colour scheme is now much more consistent
Consistently bland. =(
> -- OSM is about more than mapping main roads and the new styles serve
> to highlight the detail instead of the traditional dominant features.
This is a huge positive, important to mention.
FWIW, I've been working on my own stylesheets that I've posted here
before.
Here are some comparisons to regular OSM:
http://s3.amazonaws.com/mike.teczno.com-img/osm-comparisons-20081029/bayarea-low.png

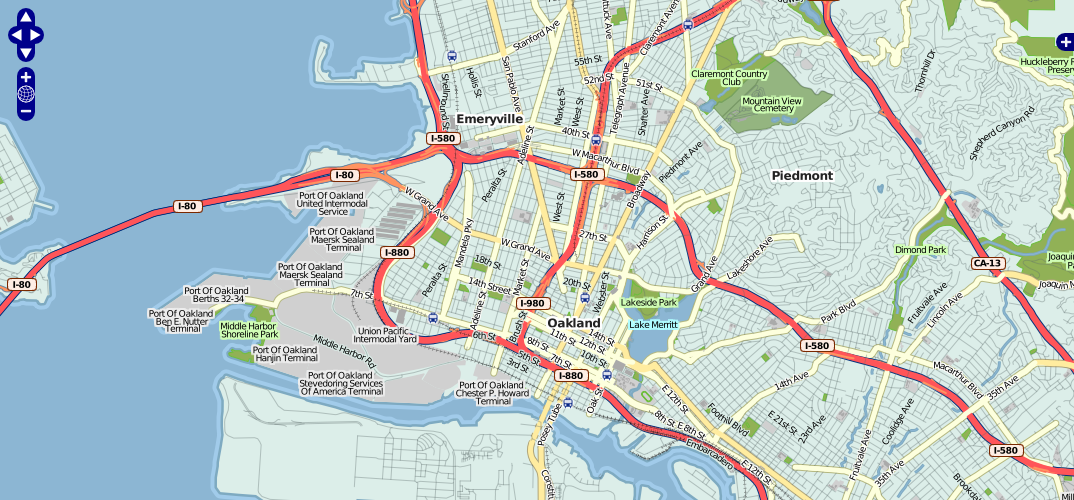

http://s3.amazonaws.com/mike.teczno.com-img/osm-comparisons-20081029/bayarea-medium.png

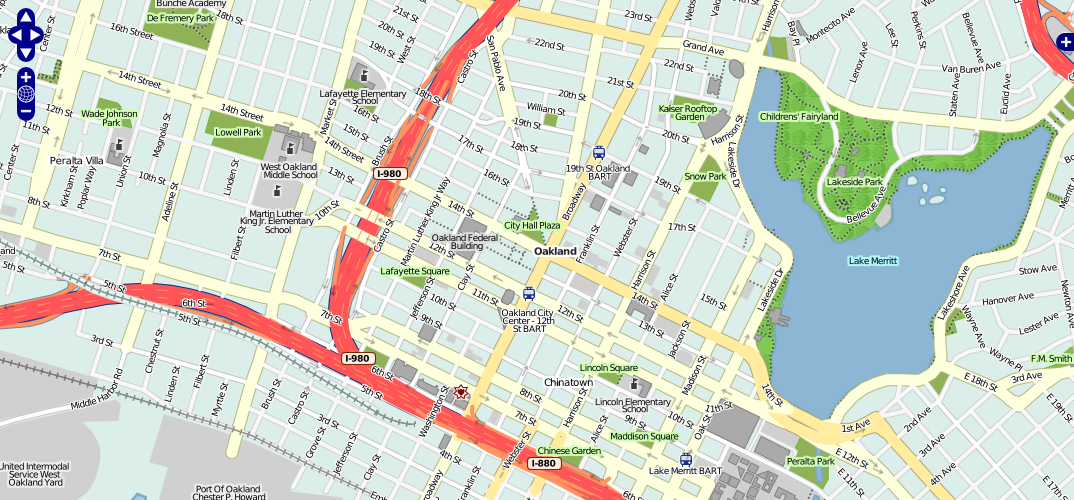

http://s3.amazonaws.com/mike.teczno.com-img/osm-comparisons-20081029/bayarea-high.png

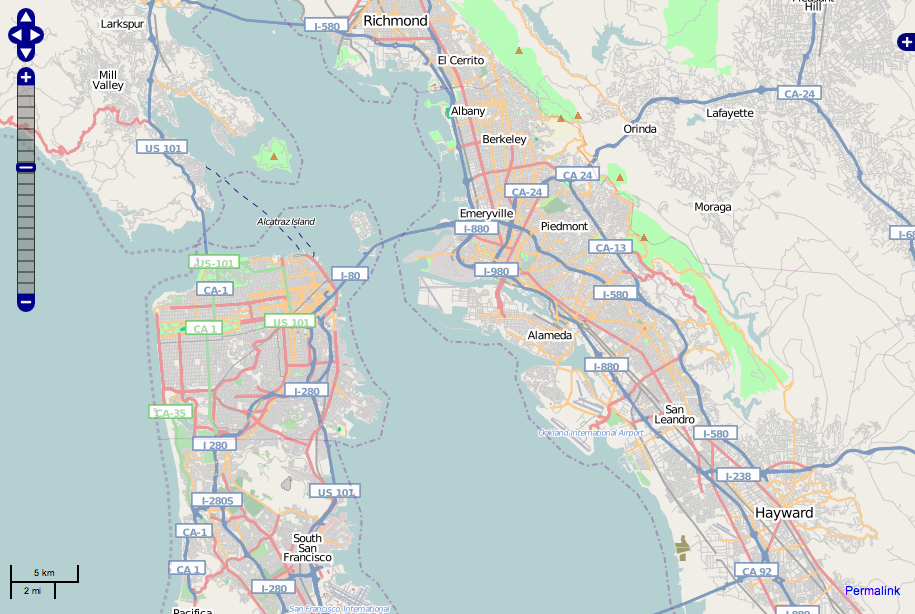

http://s3.amazonaws.com/mike.teczno.com-img/osm-comparisons-20081029/osm-low.png
http://s3.amazonaws.com/mike.teczno.com-img/osm-comparisons-20081029/osm-medium.png

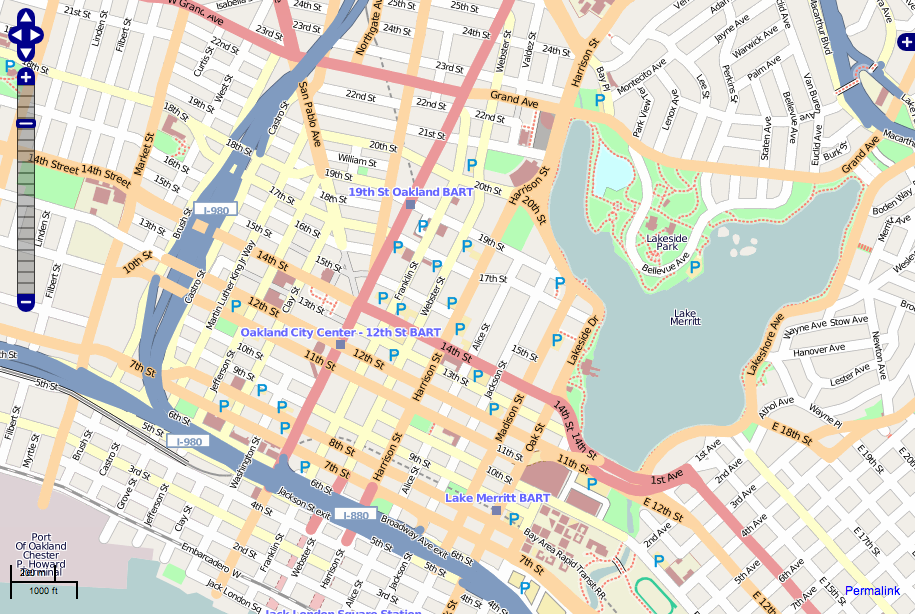

http://s3.amazonaws.com/mike.teczno.com-img/osm-comparisons-20081029/osm-high.png
An actual slippy map is available here, under "OpenStreetMap":
http://teczno.com/old-oakland/
I've similarly been trying to place greater emphasis on non-road
features, esp. rail, schools, and parks. I think I'm also a little
closer to the mark with road shields and choice of place names. I'm
missing airports and forests entirely. Recently, I added a few of Matt
Amos' excellent icons with more on the way for amenities etc.. I've
also opted for a more US-centric rendering style that puts freeways in
red and places less emphasis on primary and secondary roads (which
don't have quite the same definite meaning here as in the UK, I
believe).
The stylesheets are controlled through a pre-processor I've been
working on called Cascadenik:
http://code.google.com/p/mapnik-utils/
...with the actual stylesheets here:
http://mapnik-utils.googlecode.com/svn/trunk/serverside/cascadenik/openstreetmap/
I believe the cascadenik stylesheets might be easier for a newcomer to
modify than the pure mapnik ones, and I'd be interested in exploring a
way to vary the road color rendering among countries. I know that
there are different cartographic conventions everywhere, it'd be
interesting to see OSM support these.
-mike.
----------------------------------------------------------------
michal migurski- mike at stamen.com
415.558.1610
