Hi,

simon at mungewell.org wrote:
> I suppose the way to do it would be to break the OSM highways down in
> unique ways which link junctions, so that each could be given a length
> (following node to node) and then use the dijkstra to calculate distance
> to each 'end' node.

I happen to have a Perl script that does something like this, you give
it a starting point and a .osm file and how far you're willing to travel

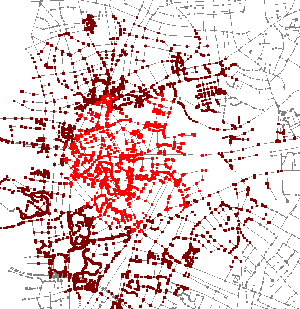

and it creates a picture like the one that is hopefully attached (where
grey = out of range, light red = half range, dark red = full range).

The script creates an in-memory structure of all nodes with their
neighbours and then uses a Dijkstra-like algorithm to flood-fill them
with the best distance found. With some tweaking one can also switch to
sketching travel times instead of pure distances, dependent on the
highway type.

Oh heck I'll just attach it here even though this is talk not dev.
Public Domain, and no warranties ;-)

Bye
Frederik

--
