[GraphHopper] Disconnected areas

[Ludwig]

Thanks for your quick reply, I only had time to look into this again now.

When I read your reply, I assumed that maybe the points I chose for
illustration of the problem were too close together or maybe on the same
road, but with my larger area I cannot get any routing to work on Naxos and
I do get the same errors on the graphhopper website, even if I choose
distant points clearly on different roads.

However, if I just choose a smaller area to create the routing data, then
the routing starts working. There is no other change to anything.
Boundaries of smaller area as given in original mail.

Example: 37.120359,25.410004 to 37.1,25.38 does not work on the extended
area (and does not work on the website), but for the smaller routing area

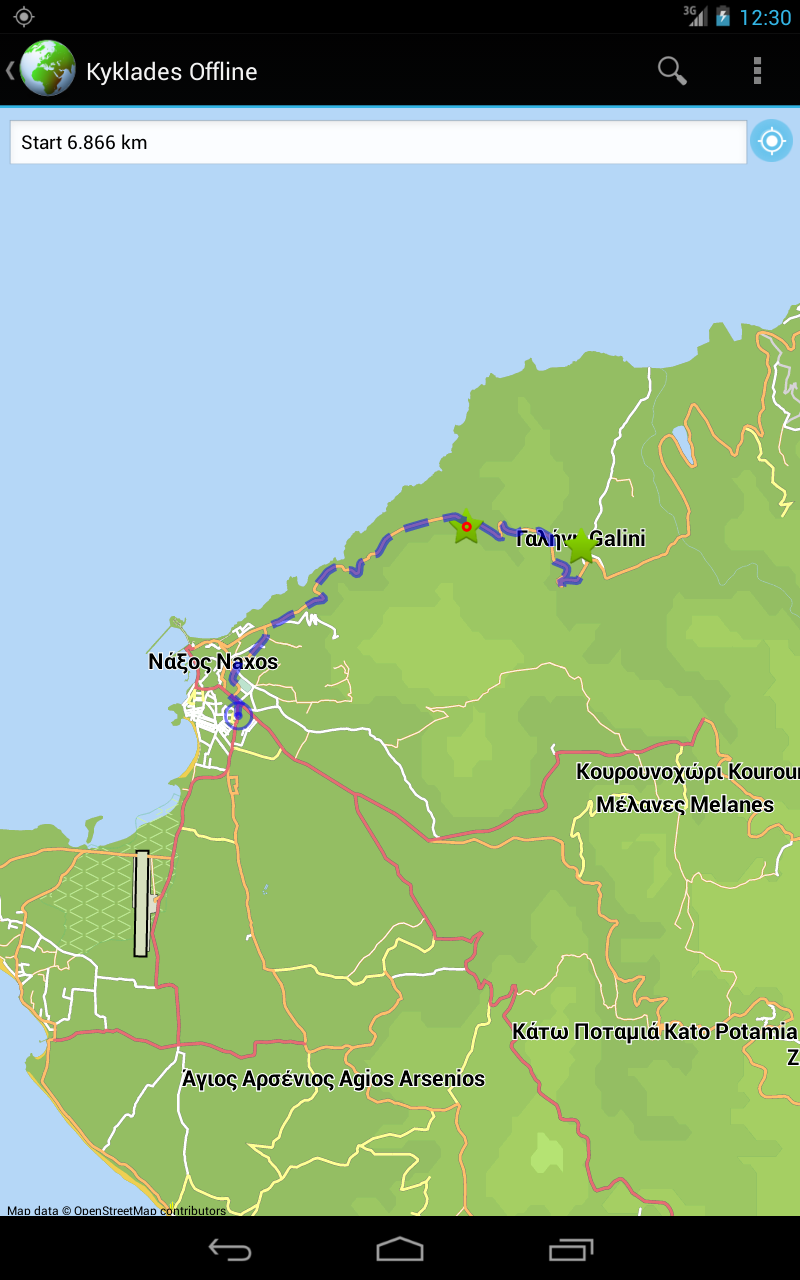

it works. See screenshot.

I have not made any effort to understand how the routing works, but my
hunch was that it is disconnected areas (in this case multiple islands)
that cause the problem. Is that even remotely possible?

Ludwig




On 15 September 2013 03:17, Peter K <peathal at yahoo.de> wrote:

>  Hi Ludwig,
>
> it looks like GraphHopper Maps has a similar problem (I tried your
> coordinates<http://graphhopper.com/maps/?point=37.169792%2C25.449737&point=37.101957%2C25.375918>).
> Currently the routing goes only from junction to junction and so the second
> point resolves to the same junction. Will be fixed (in the very near
> future) via #27
>
> Not sure why there is a difference for the "two" areas. It would be
> interesting for me to know where the second point resolves to for your
> unexpanded area and how the route looks like (screenshot?).
>
> Regards,
> Peter.
>
>
>    Following problem: I create a graphhopper app for one of the Greek
> Islands and it works. Now I expand the area to include other islands and
> the same app (no code changes) does not find the route (start and end point
> are the same as previously).
>
>  To me this suggests that once I include a wider area that is not
> connected to a subarea, it somehow confuses the routing. The exception is
> an IllegalArgumentException that says it cannot find point1 and cannot find
> point2 (then it also says the two are the same, I guess they are internally
> nulled after being unable to find them.).
>
>  The bounds for my OSM extraction are as follows:
>
> #Naxos only: works
> export LEFT=25.3
> export RIGHT=25.7
> export TOP=37.3
> export BOTTOM=36.9
>
>  #Wider Aegais: does not work
> export LEFT=24
> export RIGHT=28.5
> export TOP=38
> export BOTTOM=35.2
>
>  # Slightly more verbose error message from the error stack:
>  Error:[java.lang.IllegalArgumentException: Cannot find point 1:
> 37.16979166666667, 25.449736666666663, java.lang.IllegalArgumentException:
> Cannot find point 2: 37.101957, 25.375918,
> java.lang.IllegalArgumentException: Point 1 is equal to point 2]
>
>  Any ideas why this is so?
>
>  Ludwig
>
>
>
> _______________________________________________
> GraphHopper mailing listGraphHopper at openstreetmap.orghttps://lists.openstreetmap.org/listinfo/graphhopper
>
>
>
> _______________________________________________
> GraphHopper mailing list
> GraphHopper at openstreetmap.org
> https://lists.openstreetmap.org/listinfo/graphhopper
>
>
