[GraphHopper] Turn Restrictions
dos65
qtankle at gmail.com
Fri Jun 12 15:52:03 UTC 2015
It described in osm-wiki
(http://wiki.openstreetmap.org/wiki/Relation:restriction#Members).
There is not only "from way - via node - to way" way to specify
restriction in osm, but as I remember GH work only with this
(http://wiki.openstreetmap.org/wiki/File:Intersection_TurnRestriction_ViaNode.PNG).
On 12.06.2015 18:28, Nick Bauer wrote:
> Ok, so I believe I have figured out the "correct" way to represent a
> turn restriction in OSM so its considered by GH:
>
> Seems to be that the most important part is that the ways are exact,
> meaning that they are split at the via node.
> Put another way, the via node must represent the end of the "from" way
> and the same via node is also the end of the "to" way.
> I couldn't find this documented anywhere, although sometimes I am
> blind to certain things :)
>
> The order of to, from, via is unimportant, as i have tested it with
> via as the second, and last entries in the relation.
>
>
> On Fri, Jun 12, 2015 at 9:12 AM, Nick Bauer <nick.j.bauer at gmail.com
> <mailto:nick.j.bauer at gmail.com>> wrote:
>

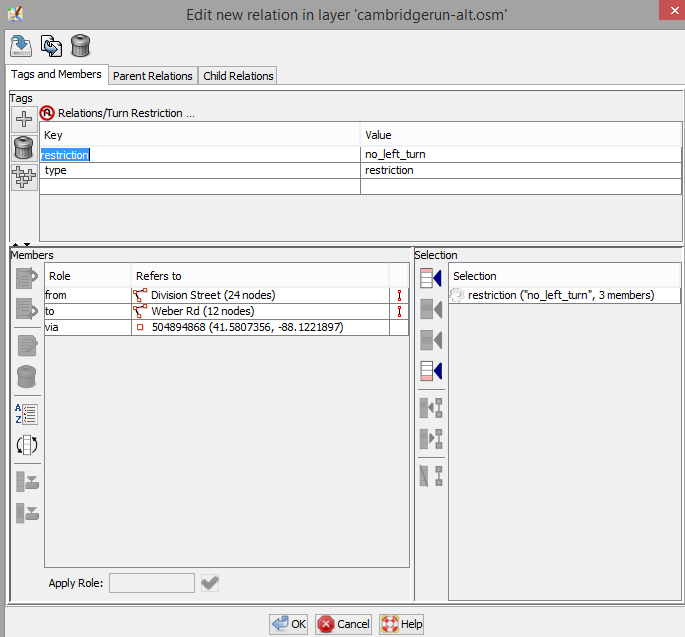

> Here is an example relation:
> Inline image 1
>
> My routing can turn in either direction, no restriction is upheld.
>
> On Fri, Jun 12, 2015 at 9:06 AM, dos65 <qtankle at gmail.com
> <mailto:qtankle at gmail.com>> wrote:
>
> Sorry, my mistake. Certainly members should contains via, from
> and to.
>
> While processing restrictions, gh look to restriction tag's
> value prefix(no or only) and restrict or allow by from, via,
> to. There is no difference between only_right_turn and
> only_left_turn if members are equals.
>
>
>
> On 12.06.2015 16:52, Nick Bauer wrote:
>> I've read that the relation must have:
>> from, to, via.
>>
>> Are you saying that it will work if the relation is only
>> containing from, to? Is the ordering important?
>>
>> Are there certain types of restrictions that work over
>> others? such as no_left_turn vs only_right_turn?
>>
>>
>> On Fri, Jun 12, 2015 at 8:41 AM, dos65 <qtankle at gmail.com
>> <mailto:qtankle at gmail.com>> wrote:
>>
>> Hi Nick.
>> Restrictions must have members(from, to). In your case
>> restriction don't have them and it does not processed by gh.
>>
>>
>>
>> On 12.06.2015 16:29, Nick Bauer wrote:
>>> Hi Peter-
>>>
>>> Sorry for the delay. Please see:
>>> https://graphhopper.com/maps/?point=41.616854%2C-88.122497&point=41.616365%2C-88.123473&locale=en-US&layer=Lyrk
>>>
>>> OSM data has a turn restriction setup where you can only
>>> turn right, however GH shows a left turn.
>>> OSM data uses a single node with restriction:no_left_turn
>>>
>>> Is this a sufficient relation? What is required for GH
>>> to consider turn restrictions?
>>>
>>> On Thu, Jun 4, 2015 at 5:14 AM, Peter
>>> <graphhopper at gmx.de <mailto:graphhopper at gmx.de>> wrote:
>>>
>>> Hi,
>>>
>>> > however I am not getting the results I expect.
>>>
>>> what result do you expect? Please be more specific
>>> e.g. also include some coordinates or screenshots
>>> and then describe the problem you have :)
>>>
>>> Regards,
>>> Peter
>>>
>>>
>>>
>>> On 04.06.2015 02:02, Nick Bauer wrote:
>>>> Hello-
>>>>
>>>> After reviewing the 0.4 list of changes, it seems
>>>> to me that turn restrictions are enabled. I have
>>>> what i believe is the correct OSM as well as
>>>> config.properties file, however I am not getting
>>>> the results I expect.
>>>>
>>>> I am mobile right now, so I can't post any detailed
>>>> output, but here is the config:
>>>>
>>>> prepare.chWeighting=no
>>>> prepare.chShortcuts=no
>>>> osmreader.acceptWay=car
>>>> graph.flagEncoders=car
>>>>
>>>> # Enable turn restrictions for car or motorcycle.
>>>> # Currently you need to additionally set
>>>> prepare.chWeighting=no before using this (see below
>>>> and #270)
>>>> graph.flagEncoders=car|turnCosts=true
>>>> graph.dataaccess=RAM_STORE
>>>>
>>>> How does this config look?
>>>> My OSM has to from and via relation elements. Any
>>>> other tips on how to correctly create the OSM?
>>>>
>>>> Thanks,
>>>> Nick
>>>>
>>>>
>>>> _______________________________________________
>>>> GraphHopper mailing list
>>>> GraphHopper at openstreetmap.org <mailto:GraphHopper at openstreetmap.org>
>>>> https://lists.openstreetmap.org/listinfo/graphhopper
>>>
>>>
>>> _______________________________________________
>>> GraphHopper mailing list
>>> GraphHopper at openstreetmap.org
>>> <mailto:GraphHopper at openstreetmap.org>
>>> https://lists.openstreetmap.org/listinfo/graphhopper
>>>
>>>
>>>
>>>
>>> _______________________________________________
>>> GraphHopper mailing list
>>> GraphHopper at openstreetmap.org <mailto:GraphHopper at openstreetmap.org>
>>> https://lists.openstreetmap.org/listinfo/graphhopper
>>
>> --
>> Челышов Вадим
>> qtankle at gmail.com <mailto:qtankle at gmail.com>
>>
>>
>> _______________________________________________
>> GraphHopper mailing list
>> GraphHopper at openstreetmap.org
>> <mailto:GraphHopper at openstreetmap.org>
>> https://lists.openstreetmap.org/listinfo/graphhopper
>>
>>
>>
>>
>> _______________________________________________
>> GraphHopper mailing list
>> GraphHopper at openstreetmap.org <mailto:GraphHopper at openstreetmap.org>
>> https://lists.openstreetmap.org/listinfo/graphhopper
>
> --
> Челышов Вадим
> qtankle at gmail.com <mailto:qtankle at gmail.com>
>
>
> _______________________________________________
> GraphHopper mailing list
> GraphHopper at openstreetmap.org
> <mailto:GraphHopper at openstreetmap.org>
> https://lists.openstreetmap.org/listinfo/graphhopper
>
>
>
>
>
> _______________________________________________
> GraphHopper mailing list
> GraphHopper at openstreetmap.org
> https://lists.openstreetmap.org/listinfo/graphhopper
--
Челышов Вадим
qtankle at gmail.com
