[Talk-ca] Joining Trails to roads.
G. Michael Carter
mikey at carterfamily.ca
Thu Jul 29 14:24:56 BST 2010
As my previous e-mail I've been playing around with routing based on
pedestrian and cycling. I'd say, in my area, 1 in 20 trails are
connected to the roads. I checked the Toronto and Brampton area. Same
issue.
Trails that cross roads, need to have a connecting node. Also they
need to join up with a road. Most trails don't join with the road but
they need to for the routing to work. Also my solution for trails that
end at a parking lot. I've been just pulling the trail around the
perimeter of the parking lot till we get to the road. (that way routing
works)
Since I didn't know trails needed to be connected to roads, I thought
I'd mention it. Is there any way we can reach all the editors of the
GTA area? As they have a lot of trails falling in this category.
Example:

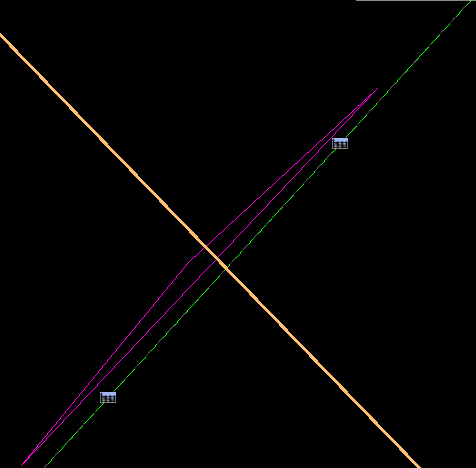

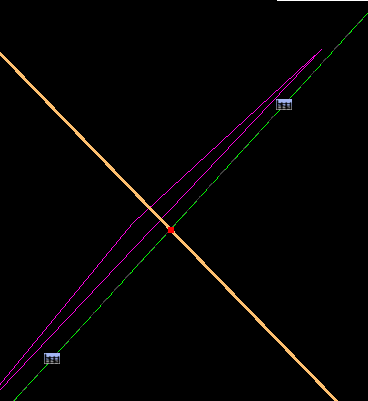

beforeAfter
Michael
